The New 107 and 114 Milwaukee-Eight™ Engines
For 2017, Harley-Davidson® is launching the ninth generation of its venerable Big Twin, called the Milwaukee-Eight™.
It is named in honor of its birthplace and its number of valves-twice as many as found on the Twin Cam motor that's been in the lineup since 1999. Harley-Davidson® says the new engine platform provides faster throttle response, more torque, better sound, improved fuel economy and a smoother ride. The new engines, which retain their classic 45-degree V-twin architecture, will power all 2017 Touring and Trike models in two displacements and three variations.

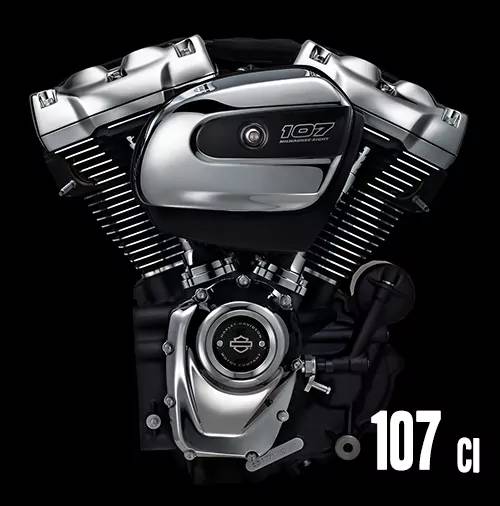

107 Specifications + Performance
- Bore 3.937 in
- Stroke 4.375 in.
- Displacement 107 cu in
- Compression Ratio 10.0:1
- Engine Torque Testing Method J1349
- Engine Torque 111.4 ft-lb
- Engine Torque (rpm) 3,250
- Lean Angle, Right (deg.) 32
- Lean Angle, Left (deg.) 31
- Fuel Economy: Combined City/Hwy 45 mpg

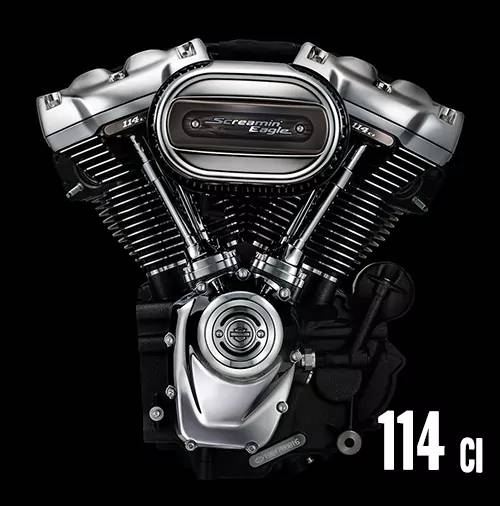

114 Specifications + Performance
- Bore 4 in
- Stroke 4.5 in.
- Displacement 114 cu in
- Compression Ratio 10.5:1
- Engine Torque Testing Method J1349
- Engine Torque 124 ft-lb
- Engine Torque (rpm) 3,250
- Lean Angle, Right (deg.) 34.3
- Lean Angle, Left (deg.) 33.4
- Fuel Economy: Combined City/Hwy 43 mpg
The Milwaukee-Eight™'s 3 Different configurations:
Milwaukee-Eight™107: (107 cubic inches, 1,750cc) with precision oil-cooled cylinder heads for the Street Glide®, Street Glide® Special, Road Glide®, Road Glide® Special, Electra Glide® Ultra Classic®, Road King® and Freewheeler® models.
Twin-Cooled Milwaukee-Eight™ 107: with liquid-cooled cylinder heads for the Ultra Limited, Ultra Limited Low, Road Glide® Ultra and Tri Glide® Ultra models.
Twin-Cooled Milwaukee-Eight™ 114: (114 cubic inches, 1,870cc) with liquid-cooled cylinder heads for the CVO™ Limited and CVO™ Street Glide® Models
See the Milwaukee-Eight™ Big Twin being built:
